Zegen Advanced Materials supplies high-purity Lithium Lanthanum Titanate (LLTO), a cutting-edge anode material engineered for high-performance lithium-ion batteries. Specifically, this compound is synthesized from high-purity Lithium Carbonate and Lanthanum Oxide. Consequently, it exhibits exceptional ionic conductivity and structural stability, making it an ideal material for next-generation energy storage applications. Furthermore, Lithium Lanthanum Titanate is widely used in materials science due to its high theoretical capacity and outstanding practical performance.
Lithium Lanthanum Titanate (LLTO) Anode material for Lithium-Ion Batteries
1.Superior Electrochemical Performance
- High Practical Capacity: Achieves 210 mAh/g (LYTO) and 190-200 mAh/g (LLTO), closely approaching theoretical limits (258 mAh/g and 225 mAh/g, respectively).
- Low Capacity Fades: Stable crystal structure (confirmed by XRD: Li2La2(Ti3O10)) ensures minimal degradation over cycles.
2.Optimized Particle Morphology

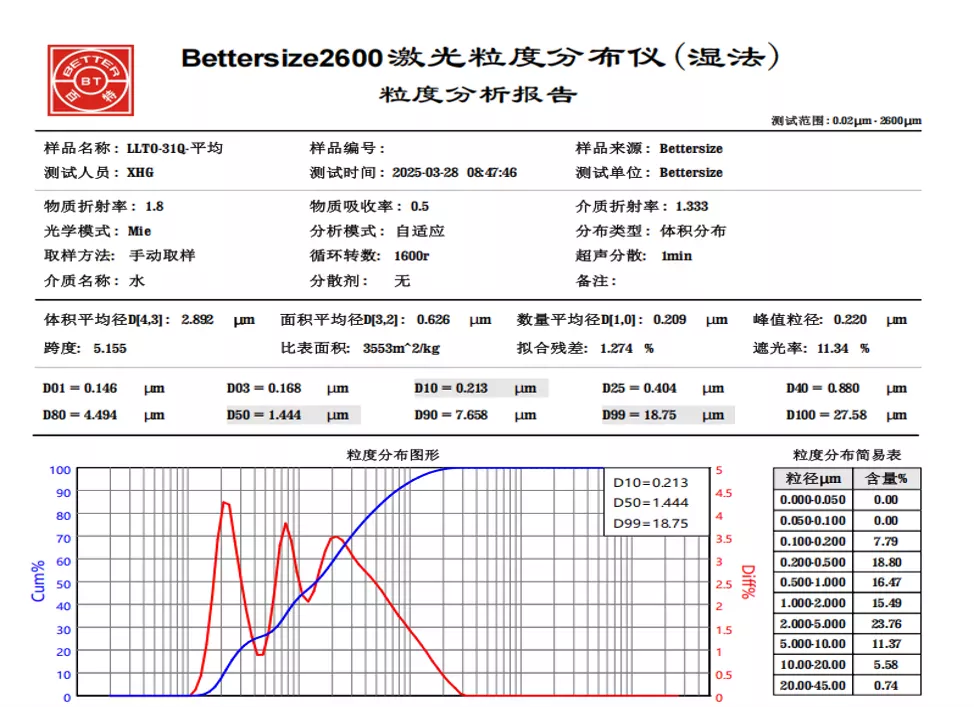

- Uniform Particle Size: D50 of 1.44μm enhances electrode homogeneity and ion diffusion efficiency.

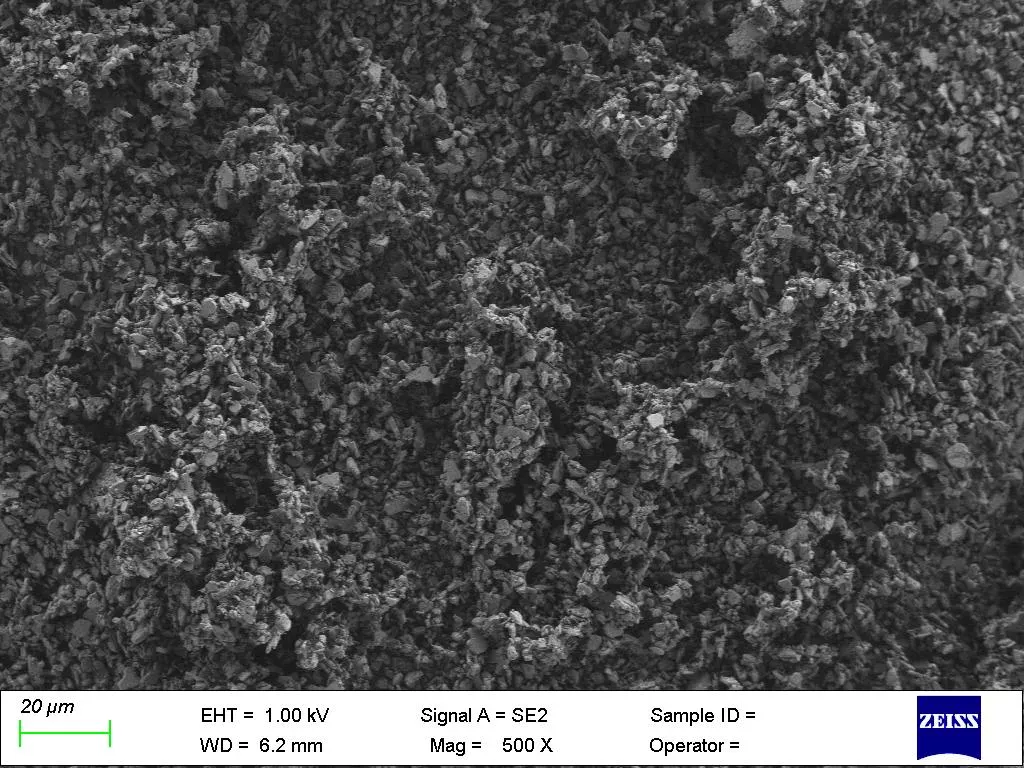

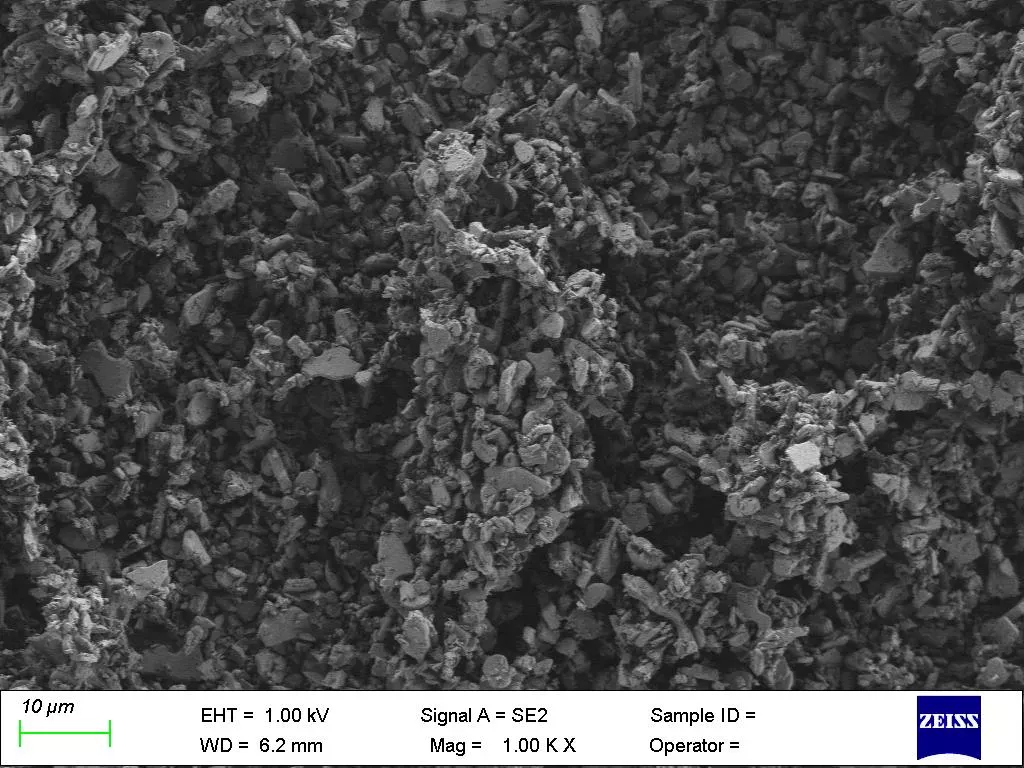

- SEM-Verified Structure: Electron microscopy (SEM/TEM) confirms smooth, speherical particles for consistent electrode fabrication.
3.Enhanced Safety & Stability
- Thermal Resilience: Resists dendrite formation, reducing short-circuit risks.
- Wide Voltage Compatibility: Suitable for high-voltage battery systems.
4.Eco-Friendly & Cost-Effective
- Low cobalt/nickel content reduces environmental impact and raw material costs.
Technical Specifications
| Parameter | Details |
| Chemical Formula | Li2La2Ti3O10 (LLTO) |
| Particle Size (D50) | 1.44μm |
| Theoretical Capacity | LYTO:258 mAh/g; LLTO: 25 mAh/g |
| Practical Capacity | LYTO:~210 mAh/g; LLTO: 190-200 mAh/g |

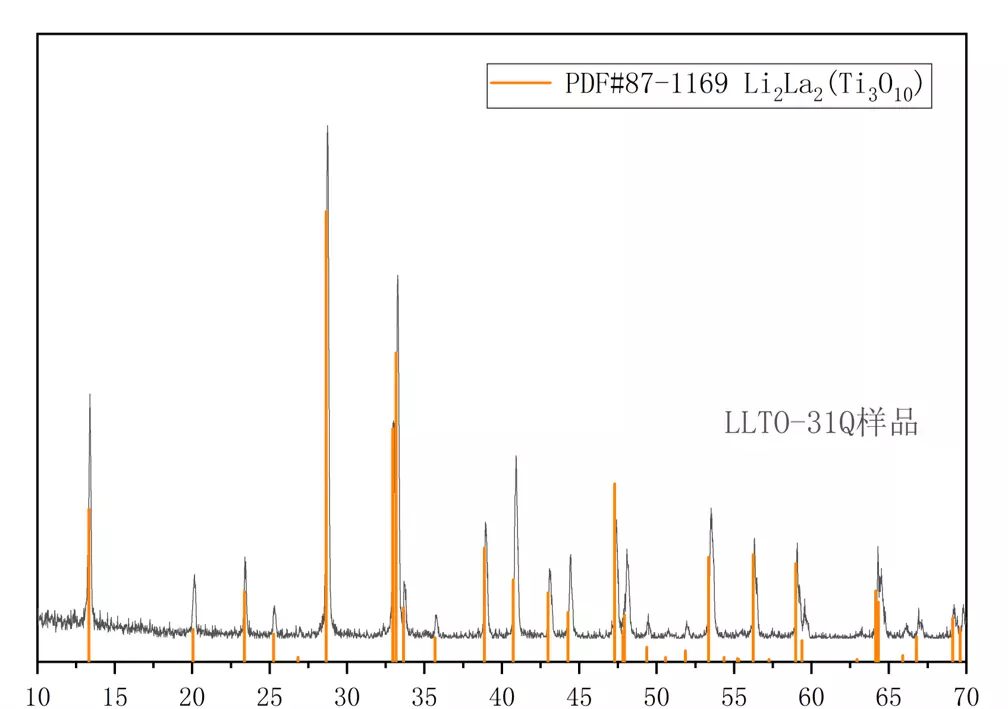

| XRD Pattern | Matches Li2La2(Ti3O10) phase |
| Morphology | Sperhcail, agglomerate-free (SEM verified) |






Applications
- Solid-State Lithium Batteries: Researchers utilize Lithium Lanthanum Titanate as a key material for solid-state electrolytes. Specifically, it is essential for producing high-energy-density batteries that offer superior safety and performance. Because of its high ionic conductivity, LLTO-based electrolytes are crucial for the development of next-generation solid-state lithium batteries, which promise to revolutionize energy storage. For detailed technical standards on solid-state battery materials, industry professionals can refer to authoritative resources like the Battery Innovation Center.
- Electric Vehicle (EV) Batteries: Engineers rely on Lithium Lanthanum Titanate for high-performance EV batteries. For instance, its high practical capacity (190-200 mAh/g) facilitates the development of batteries with extended driving range and reduced charging time. Moreover, these properties are fundamental to the creation of advanced electric vehicles, where energy density and power output are critical for both consumer and commercial applications.
- Grid Storage & Consumer Electronics: Scientists employ Lithium Lanthanum Titanate in the development of advanced grid storage systems. Additionaly, its long cycle life and thermal resilience enhance the efficiency of large-scale energy storage and portable electronics. Therefore, it serves as a valuable material in R&D for creating novel renewable energy solutions with tailored properties for sustainable power management.
Properties & Storage
Lithium Lanthanum Titanate has a theoretical capacity of 225 mAh/g and a practical capacity of 190-200 mAh/g. Unlike many other anode materials, it exhibits a stable crystal structure (confirmed by XRD) and resists dendrite formation. Therefore, proper storage is critical: keep containers tightly closed in a cool, dry place, strictly avoiding contact with moisture and strong oxidizing agents to prevent degradation.
Why Choose our LLTO anode Material?
- R&D-Backed Innovation: Synthesized via advanced solid-state reactions for purity and performance.
- Customizable Solutions: Adjustable particle size and surface treatments available.
- Quality Assurance: Rigorous QC with batch-specific XRD/SEM reports.
